How to draw fractal tree in html5

Recursion is a very popular technique for solving computer science problem. In this tutorial, I am going to show you how to generate a fractal tree

What is a fractal tree?

In mathematics, a fractal is a self-similar subset of Euclidean space whose fractal dimension strictly exceeds its topological dimension.

var canvas=document.getElementById("canvas");
var ctx=canvas.getContext("2d");
var width=canvas.width=window.innerWidth;
var diff=Math.PI/6;
height=canvas.height=window.innerHeight;
function line(x1, y1, x2, y2) {
  ctx.beginPath();
  ctx.strokeStyle='hsl(' + 360 * Math.random() + ', 50%, 50%)';
  ctx.moveTo(x1, y1);
  ctx.lineTo(x2, y2);
  ctx.stroke();
}
window.onload=function(){

  function tree(x,y,len,angle,depth){
    var x1=(x+len*Math.cos(angle));
    var y1=(y+len*Math.sin(angle));
    line(x,y,x1,y1);
    if(depth>1){

      tree(x1,y1,len*2/3,angle+diff,depth-1);

      tree(x1,y1,len*2/3,angle-diff,depth-1);
    }

  }

  tree(height/2,height-100,100,-Math.PI/2,16);


};

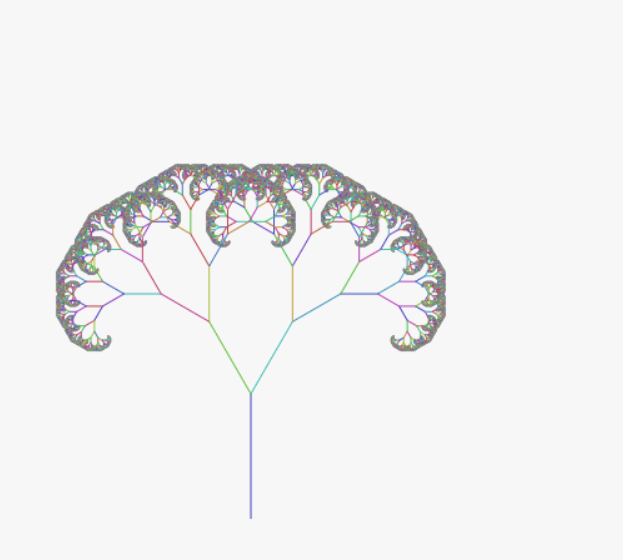

Fractal Tree
